M8070B
M8070B
System Software for M8000 Series of BER Test Solutions

Под заказ
The M8070B is a system software required to control the M8000 BERTs and AWGs platforms. The M8070B offers a graphical user interface and remote control for all parameters. Supports connectivity of the instruments and the controller via USB and PCIe. The functionalities of the M8070B software can be enhanced by addition with following software packages:
- M8070ADVB Advanced Measurement Package for M8000 Series BERT Test Solutions- This package offers advanced features like automated jitter tolerance test and parameter sweeps, eye diagram measurement or the integration of external equipment such as electrical clock recovery or a real-time scope as an error detector.
- M8070EDAB Error Distribution Analysis Package for M8000 Series BERT Test Solutions- this package enables a deep insight into error mechanisms such as error bursts, error distribution or deterministic error patterns. This information can be used to estimate the performance of FEC-based systems.
Ключевые возможности и технические характеристики
- Controls M8041A, M8051A, M8061A, M8062A, M8045A, M8046A, M8195A and M8196A modules
- Graphical user interface
- Remote control interface
- Pattern and sequence editor

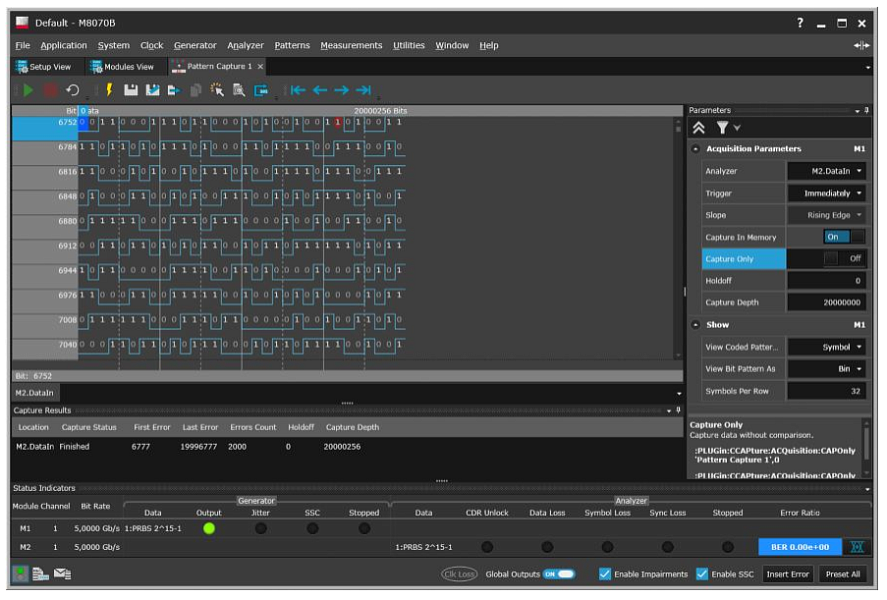

- Pattern capture
- Error insertion
- Runs on external PCs with Windows 7/8/10 and embedded controller for AXIe
Характеристика | Значение |
---|
