M8070A

M8070A

System Software for M8000 Series of BER Test Solutions
Keysight Technologies
Под заказ

The M8070A system software for BER test solutions is required to control the J-BERT M8020A. The M8070A system software can be used to control also the M8195A and M8196A AWG for digital applications where non-NRZ data formats are required such as PAM-4.
It offers a graphical user interface and remote control for all parameters.

Ключевые возможности и технические характеристики

  • Controls M8041A, M8051A, M8061A, M8062A, M8045A, M8046A, M8062A, M8195A and M8196A modules
  • Graphical user interface
  • Remote control interface

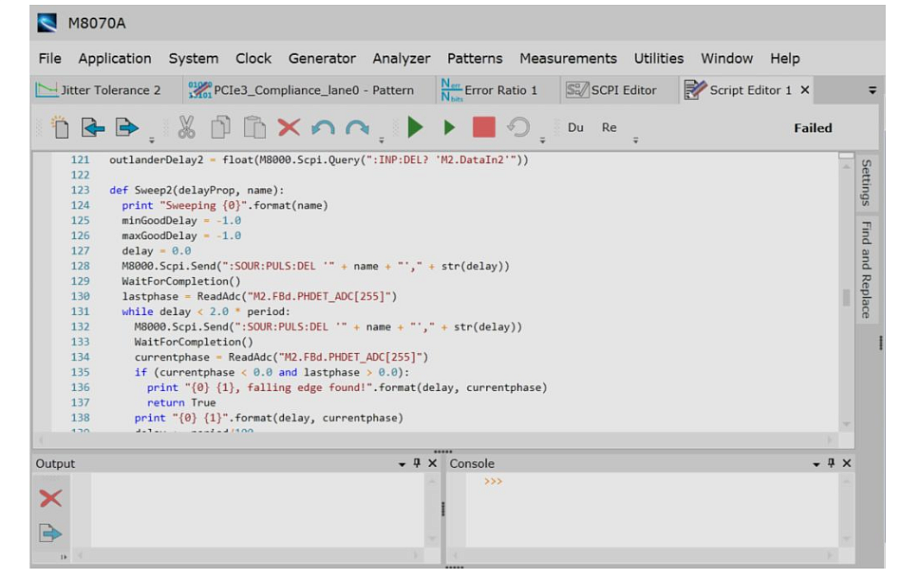

  • Scripting interface

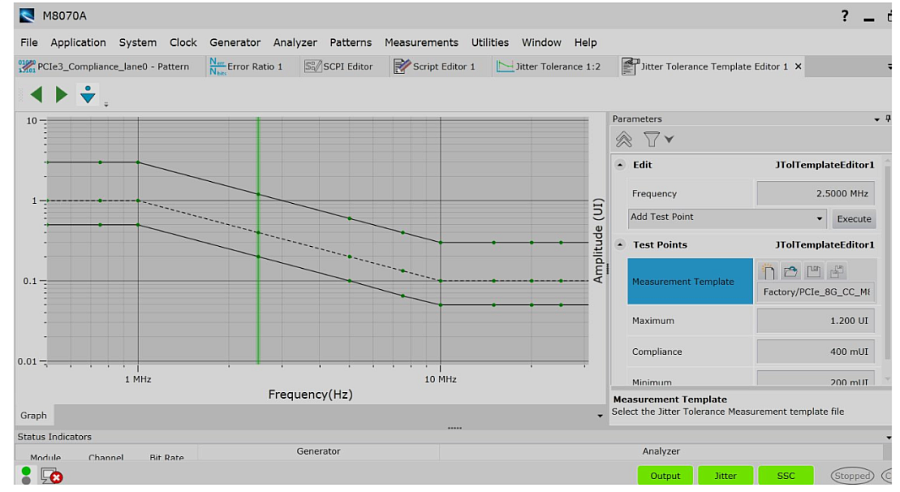

  • Automated measurements (jitter tolerance, instant and accumulated BER, BERT Scan with RJ/DJ separation)
  • Pattern and sequence editor
  • Runs on external PCs with Windows 7/8/10 and embedded controller for AXIe
  • Access DUT’s built-in error counters and status registers via the DUT control interface option
Показать большеменьше
