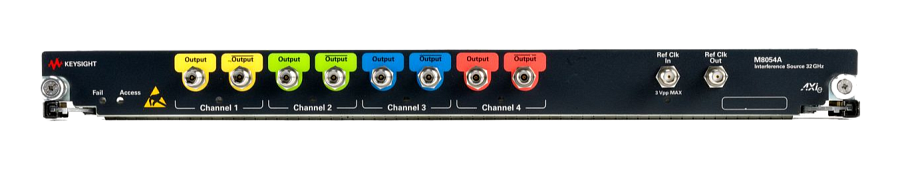

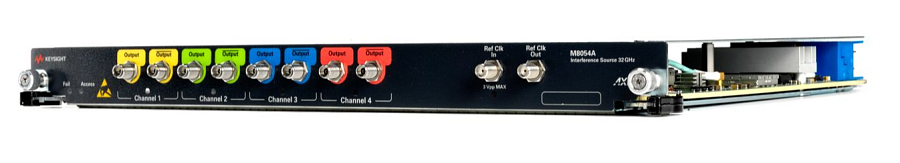

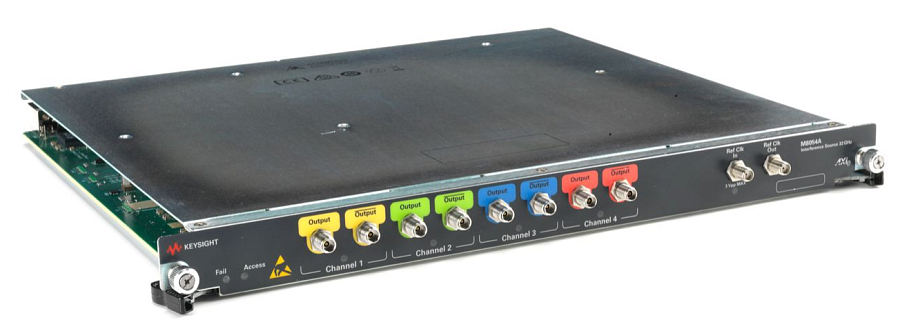

M8054A

M8054A

Interference Source, 32 GHz
Keysight Technologies
Под заказ

The Keysight M8054A interference source allows to generate repeatable and accurate level impairments for testing of high-speed digital receivers that support symbol rates up to 64 Gbaud.

Target applications:
Receiver test for devices with PCIe® 4/5, OIF CEI-56G, IEEE802.3 bs, bj, cd, by, SAS, and other high-speed digital interfaces.

Ключевые возможности и технические характеристики

  • Random level interference with crest factor > 4
  • Sinusoidal level interference
  • Common mode and differential mode
  • Bandwidth adjustable up to 32 GHz
  • 4 differential output channels to avoid baluns
  • Adjustable amplitude up to 1 Vpp (se), 2 Vpp (diff.)
  • 1-slot AXIe module for combined configurations with M8040A high-performance BERT
  • Graphical user interface and remote control via M8070B system software for M8000 series of BER test solution
Показать большеменьше
